Replacement Surge Protection Module for 50 Amp Power Watchdog-Quality Guarantee

Description

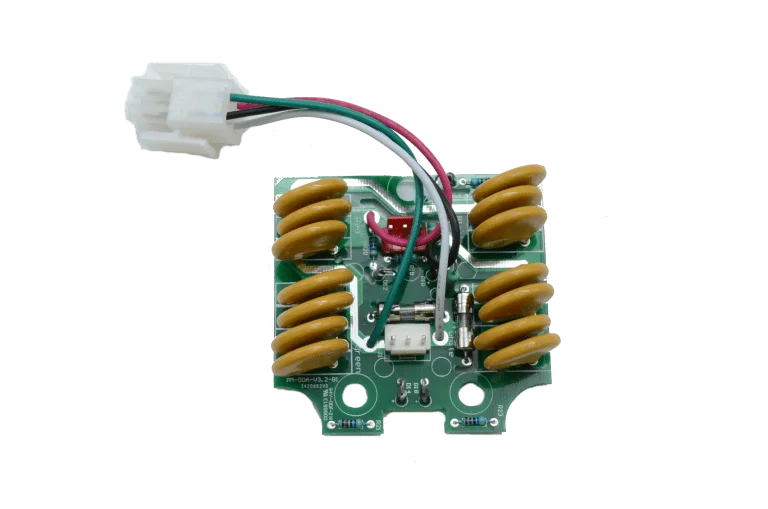

6,100 Joules Surge Protection Module
This replacement surge protection module is only for the PWD50 unit. It is designed for use only with the non-EPO version.

Simple installation! The only tool required is a Phillips screw driver.

Instructions

1. UNPLUG THE UNIT – make sure unit is fully disconnected from power prior to installation.
2. Unscrew 8 Phillips screws on the back of the unit.
3. Unscrew the top and bottom cable gland nuts.
4. Unscrew the screws holding the old surge module.
5. Unplug the old surge module from the unit.
6. Connect the new surge protection module.
7. Replace all the screws and re-tighten the cable gland nuts.
