OCLMP24.1 – 20.9-24.1mm SS Single-Ear Hose Clamp
Size: 20.9-24.1mm
Ear type clamps “breathe” and adapt to the expansion and contraction of hose affected by thermodynamics or aging- no need to retighten
Clamps are lightweight and compact – important when bulky screw-type clamps interfere with limited space applications
Provides a tamper-proof seal without damage to the hose
Made of UNS S30400 (DIN 1.4301) stainless steel
Features a mechanical lock at the joint instead of a spot weld — prevents failure due to corrosion
Design guarantees 360° seal preventing leaks on soft or thin walled hose or tubing
One-ear design allows easy accessibility
Narrow band concentrates transmission of clamping force, less weight
Clamp ear compensates for component tolerances, adjustable surface pressure
Dimple increases clamping force, spring-effect compensates for changes in diameter due to thermal expansion
Specially formed strip edges reduce risk of damage to parts being clamped

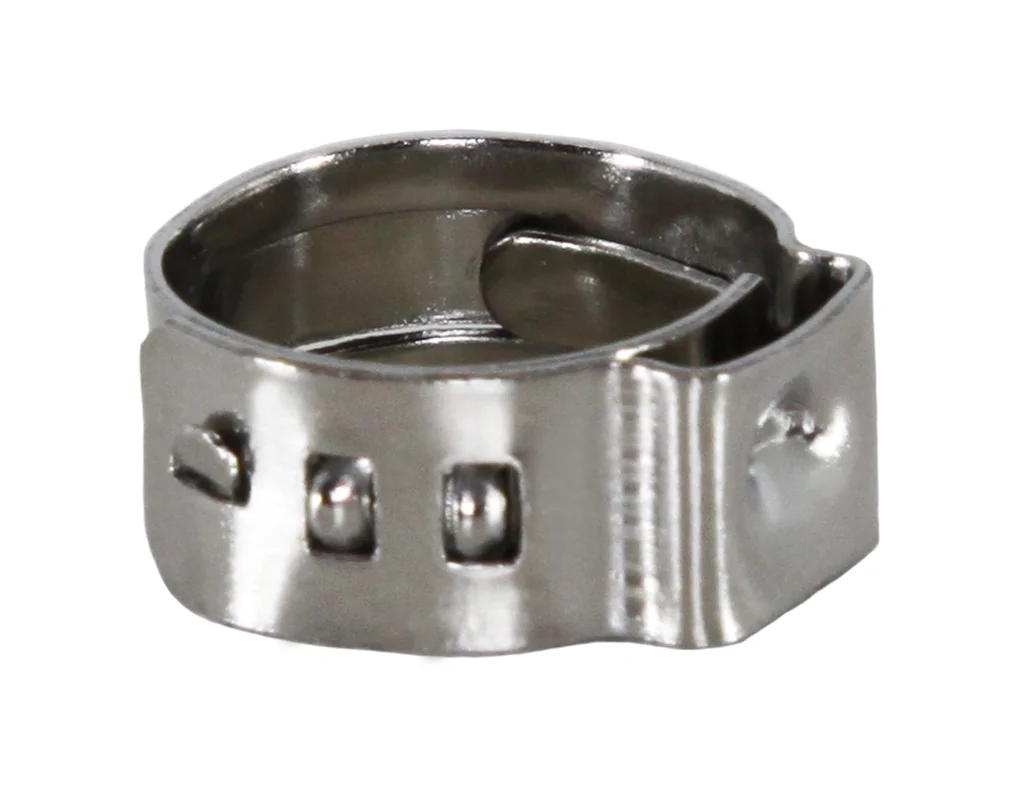

current production may vary from item image
