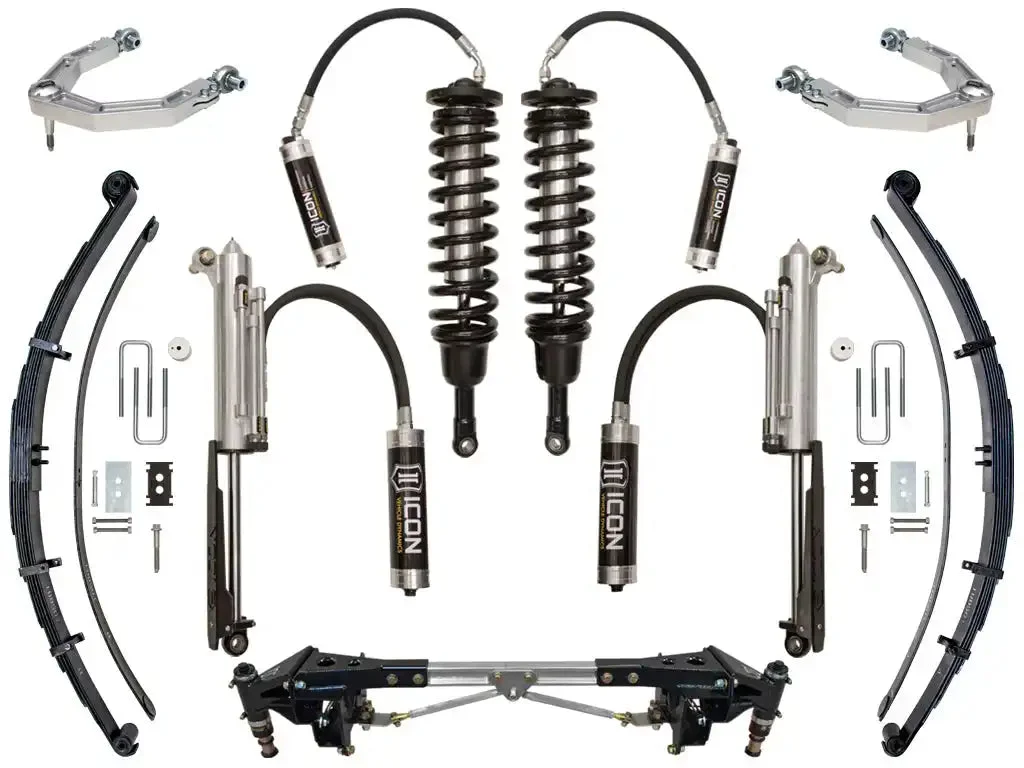

ICON RXT Multi-Rate Leaf Spring:r

• Key Features of the Raptor Front 3.0 Coilover Shock:

r

• Oversized 1” Heavy Duty CNC Machined Shock Shafts

r

• Extended Droop Travel and Increased Overall Performance on and off road

r

• Key Features of the Raptor Upper Control Arms:

r

• 6061 Billet Aluminum

r

• Precision CNC Machined

r

• Patented Delta Joint (U.S. Patent No. 10,731,700)

r

• RSMX PTFE Lined 7/8” Rod Ends

r

• Easily Adjustable on the Vehicle for Perfect Wheel Alignments

r

• 17-4 Stainless Steel Taper Adapter Pin Provides OEM Like Fitment

r

• O-ring sealed dust cover

r

• 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coilover Shocks

r

• Key Features of Hydraulic Bump Stop System:

r

• Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs

r

• Easy bolt on installation without having to remove the truck bed

r

• 6061 Solid billet cross bar that is polished & anodized

r

• Bump stop striker pad does not require leaf spring disassembly

r

• Comfortable on road manners with sufficient damping capability under extreme load

r

• Hydro-pneumatic bump stop increases bump energy capacity

r

• Velocity sensitive Hydro-pneumatic bump stop increases the amount of energy absorbed the faster it is hit

r

• Reduces rear end kick and improves overall performance

r

• Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use

r

• Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel

r

• Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts

r

• Increases frame rigidity and improves overall vehicle dynamics

r

• Industry first billet cross beam

r

• Pre-tuned and Nitrogen charged for most Ford Raptors

r

• Integrated adjustability for future ICON Raptor specific products

r

• Key Features of the Raptor RXT Multi-Rate Leaf Spring:

r

• 3 User-adjustable spring rates for unique setups

r

• Triple military wrap front eyelet and rear half wrap for increased durability

r

• Rebound leaf reduces severe axle wrap

r

• Tip inserts and leaf separators to reduce friction and improve ride comfort

r

• Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains

r

• OE style bonded rubber bushings that are maintenance free and do not squeak

r

• Bump stop extensions included for use when no aftermarket bump stop kit is installed

r

• New Ford OE front spring eye bolts included for easy removal and re-installation of springs

r

• Key Features of the Raptor RXT Rear 3.0 Bypass Shock:

r

• 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir

r

• Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location

r

• Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation

r

• Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire

r

• Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools

r

• High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression

r

• Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection

r

• High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning

r

• Replaceable bypass tubes that can easily be replaced if damaged

r

• Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment

r

• Special engineered damped valve seats for quiet and precise operation without the standard bypass loud “clicking” noise you will find with other brands

r

• Multi stage cad plated finish with polished and anodized top cap / rod ends

r

• Protective shin guards standard with every kit

r

• Nitrogen Charged 6063-T832 Aluminum 10” Remote Reservoirs

r

• Adjustable Ride Height from 1 – 3” of Lift

r

• ICON Engineered Eibach Springs Offer Increased Travel and Performance

r

• Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability

r

rr

Attributes:

r

r
• GTIN: 00840103419817

r

• Brand Name: ICON Vehicle Dynamics

r

• 2064: Steel

r

• 2371: NO

r

• 30: Yes

r

• 3096: Black

r

• 3097: Yes

r

• 3390: Performance

r

• 5520: 3

r

• 7325: 2

r

• Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH

r

• OEM Wheels & Tires Fitment: Yes

r

• Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)

r

• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset

r

rr

Extended Information:

r

r
• Country of Origin: US

r

• Emissions : 4

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1.0

r

• Package UOM: EA

r

• Dimension: 48.0000 x 48.0000 x 10.0000 inches

r

• Weight: 498.0000 lb
