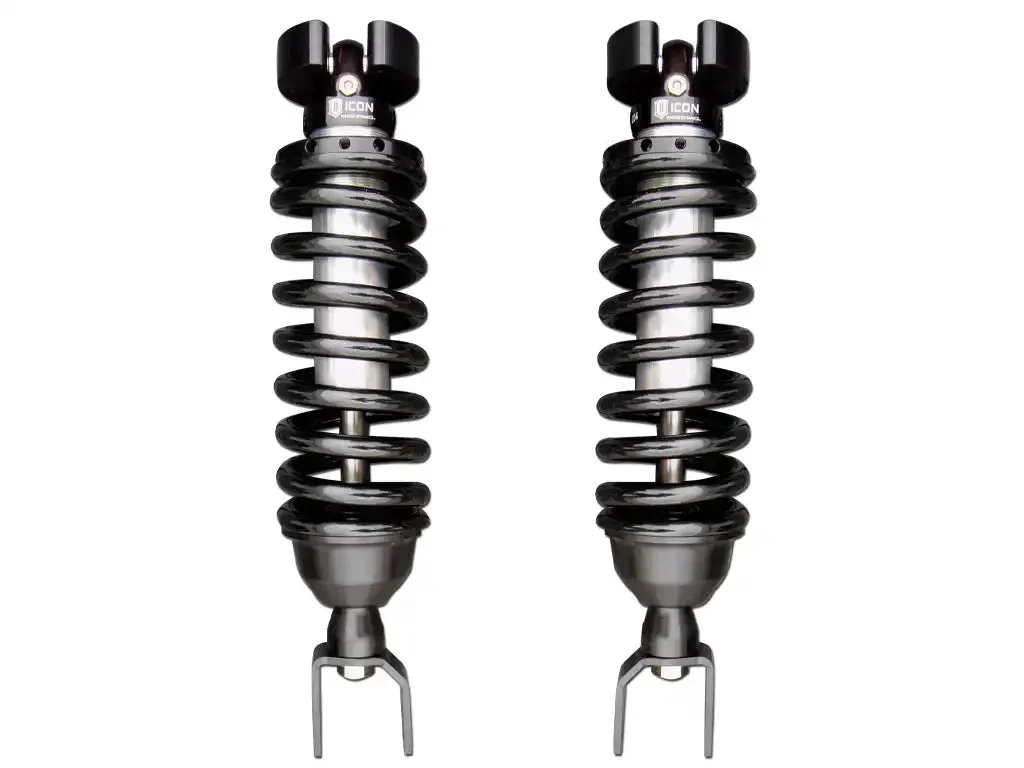

ICON Vehicle Dynamics FRDK_211000 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT-Quality Guarantee

Description

ICON’s Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.r

• Adjustable coilovers yield .75-2.5” of front lift height on ’09-’18 models or 0-1.5″ of lift on ’19-Up models

r

• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use

r

• Superior low speed control reduces body roll and increases on-road stability

r

• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage

r

• Corrosion resistant CAD plated shock body with 7/8″ shaft

r

• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

r

• Bolt-in design makes for an easy install into OEM shock location

r

rr

Attributes:

r

r
• GTIN: 00840103400495

r

• Brand Name: ICON Vehicle Dynamics

r

• 2917: yes

r

• 3390: Performance

r

• 408: Center of Clevis Holes

r

• 409: Top of Upper Mount Plate

r

• 48: Clevis

r

• 49: Mounting Plate

r

• 50: No

r

• 51: yes

r

• 52: 2.5

r

• Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

r

• Adjustable Damping: NO

r

• Coil Over Springs Included: Yes

r

• Damping Type: Oil

r

• Dust Shield: No

r

• OEM Wheels & Tires Fitment: Yes

r

• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

r

• Recommended Aftermarket Wheels: (2009-UP Models) ICON Alloys – 17×8.5″ w/ 4.75″ Backspace / 0mm Offset

r

• Remote Reservoir: NO

r

• Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH

r

• Shaft Diameter: 0.875

r

• Spring Color: Black

r

• Spring Material: Steel

r

rr

Extended Information:

r

r
• Country of Origin: US

r

• Emissions : Emissions Compliance Exempt

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1.0

r

• Package UOM: EA

r

• Dimension: 27.0000 x 12.0000 x 6.0000 inches

r

• Weight: 42.0000 lb
