Connector Set, 47-Way Weatherproof-Quality Guarantee

This weatherproof connector set is recommended for the following applications:

Pass through

Engine compartment

High-density in-line harnesses

Features & Benefits:

Validated to SAE J 2030

Standard connector footprint (SAE J1939)

Interchangeable with industry standard product

Superior sealing

High current capability

High terminal retention

Positive locking connector

Lower insertion force terminals

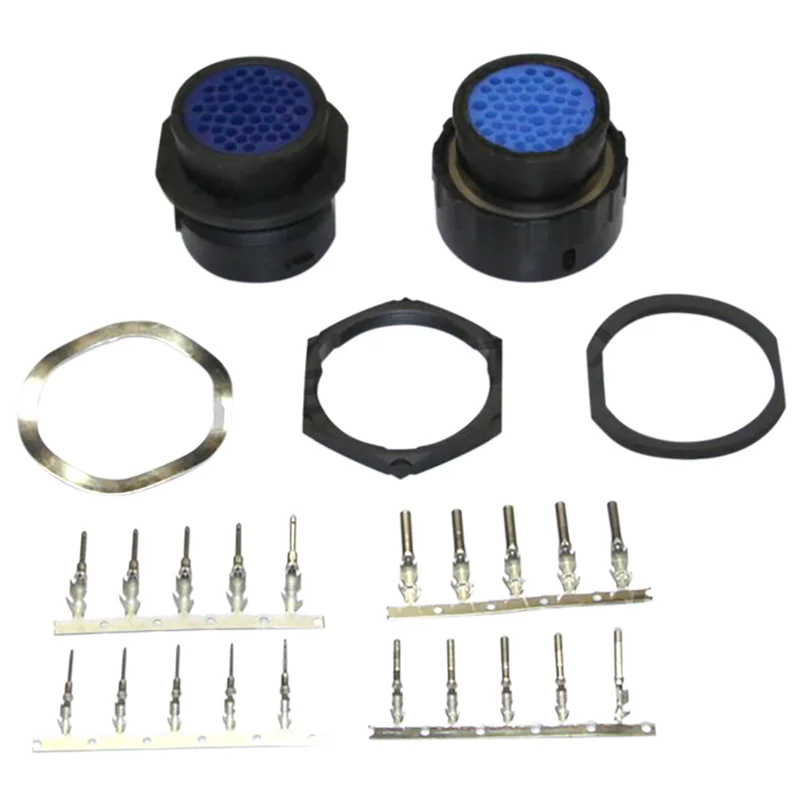

KIT INCLUDES:
1 x Female Connector Body
1 x Male Connector Body
45 x Male Terminals
45 x Female Terminals
5 x Male Terminals (large)
5 x Female Terminals (large)
1 x Lock Washer
1 x Retaining Nut
1 x Gasket

SPECIFICATIONS (KIT):
WIRE GAUGE (AWG): 14-12

NOTE: Proper crimpers and soldering equipment are recommended to properly assemble this connector set.

The HES (Harsh Environment Series) connection system provides higher current capability, improved sealing, higher terminal retention and a significant cost advantage compared to standard pin-and-sleeve systems. Also, Delphi HES is compatible with existing systems in the commercial and agricultural vehicle markets
